AIR INLET & EXHAUST, HOWO PARTS CATALOGS


AIR INLET & EXHAUST, HOWO PARTS CATALOGS

Category: howo d10 euro-iii parts catalogs,  howo parts catalogs pdf

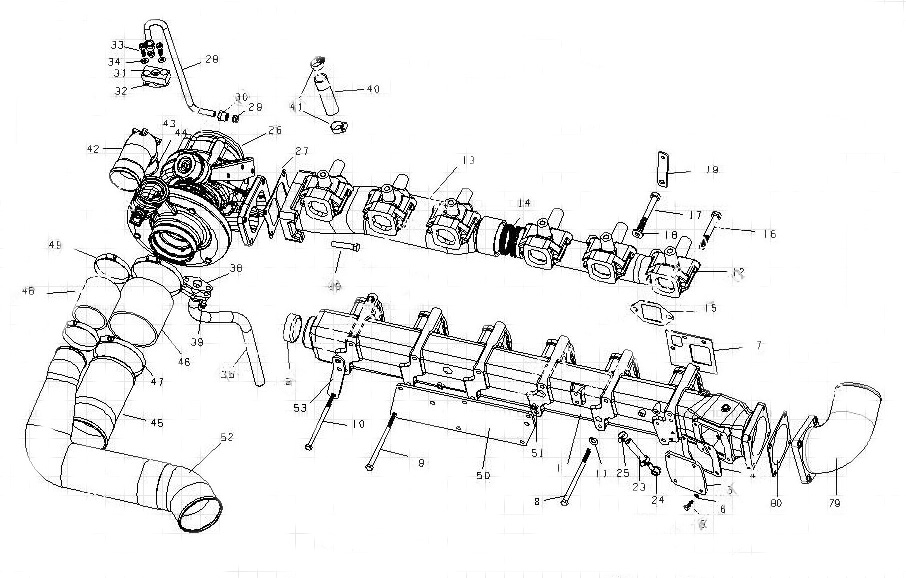

INTAKE & EXHAUST (REAR POSITION), D10 ENGINE EURO-III
Serial Name Number
1 Intake pipe VG1540110043
2 Plug 90003989286
3 Intake manifold cover VG1540110011A
4 Intake manifold cover gasket VG1540110018A
5 Hex head bolts M6 × 20 90003802331
6 Wave spring washers 90003932008
7 Intake manifold gasket VG1500110024
8 Hex head bolts VG1540110025
9 Hex head bolts 90003800497
11 Wave spring washers 90003932023
12 Front exhaust manifold VG2600111137
12 Front exhaust manifold VG1540110201
12 Front exhaust manifold VG2600111290
12 Front exhaust manifold VG1540110003
13 Rear the exhaust manifold VG2600111136
13 Rear the exhaust manifold VG1500110123
13 Rear the exhaust manifold VG1540110202
13 Rear the exhaust manifold VG2600111280
13 Rear the exhaust manifold VG2600110855
13 Rear the exhaust manifold VG1540110004A
14 Exhaust pipe sealing ring VG2600110162
15 Exhaust pipe gaskets VG1560110111
16 Exhaust pipe fastening bolts VG2600111052
19 Support VG1047110105
20 Stud M10 × 48DIN939 VG2600111429
20 Stud M10 × 45DIN939 VG2600111428
21 Hex head bolts VG1560110241
21 Hex head bolts Q150B0615
22 Spring washer 90014350003
23 Hose coupling VG1540110035
24 Fittings VG1540110038
25 Hose clamps 90003989300
26 Turbocharger VG1034110061
26 Turbocharger VG1029110060
26 Turbocharger VG1540110066
26 Turbocharger VG1029110070
26 Turbocharger VG1034110071
26 Turbocharger VG1540110006
26 Turbocharger VG1027110081
26 Turbocharger VG1029110081
26 Turbocharger VG1034110081
27 Turbocharger Gasket VG1560110210
28 Turbocharger inlet pipe VG1560070002A
28 Turbocharger inlet pipe VG1560070004A
28 Turbocharger inlet pipe VG1092110024
28 Turbocharger inlet pipe VG1560070013
28 Turbocharger inlet pipe VG1500079015
28 Turbocharger inlet pipe VG1540110013A
28 Turbocharger inlet pipe VG1500079022
28 Turbocharger inlet pipe VG1500119023
29 Clamp 90003559563
30 Nuts 90003559513
31 Inlet pipe flange VG1560110152
32 Inlet pipe gasket VG609E110050
33 Hexagon socket head screws 90003862428
34 Self-locking washer VG188250083
35 Turbocharger return pipe assembly VG1560079003
35 Turbocharger return pipe assembly VG1560079006
35 Turbocharger return pipe assembly VG1540110205
35 Turbocharger return pipe assembly VG1560070040
35 Turbocharger return pipe assembly VG1560079361
35 Turbocharger return pipe assembly VG1560070046
38 Return pipe flange gasket VG2600110048
39 Return pipe bolt VG1460070014
40 Turbocharger oil return hose VG2600070071
41 Hose clamps 90003989301
42 Elbow coupling VG1800110045
43 Clips VG1560110226
44 Seals VG190320035
48 Silicone tube VG1047110103
49 Strong clamps VG9003980003
50 Rail bracket VG1540110016A
51 Hexagon weld nut M8 M8DIN929
52 Intercooler pipe assembly VG1047110104
52 Intercooler pipe assembly VG1047110100
52 Intercooler pipe assembly VG1500119051
52 Intercooler pipe assembly VG1500119008
52 Intercooler pipe assembly VG1540110027A
52 Intercooler pipe assembly VG1087110001
52 Intercooler pipe assembly VG1069110001
56 Clamps VG1560110021
56 Clamps VG1560110029
57 Hex head bolts 90003802419
58 Wave spring washers 90003932023
59 Tensioning pin VG209190017
60 Tensioning pin VG1700550013
61 Hexagon socket head screws AZ90003862462
62 Harness Bracket VG1540110053C
63 Elbow coupling VG2600111078
64 Hex head bolts 90003802411
65 Wave spring washers 90003932023
66 Fixing plate VG1047110102
67 Hex head bolts 90003802415
68 Wave spring washers 90003932023
70 Front shrouds VG2600111144
71 Shrouds VG2600111145
72 Large Washer 90003936109
73 Heat shield bolt VG260110962
74 Harness lower bracket VG1096119055
75 Exhaust takeover VG1500119020
76 Stud VG1560110187
77 Self-locking nuts 190003888470
78 Exhaust heat shield takeover VG1092110031
79 Inlet connection VG1540110023
80 Inlet connection pads VG1560110180
