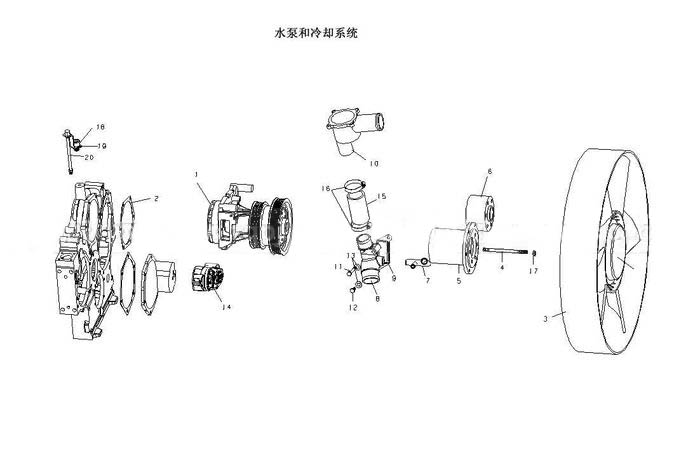

WATER PUMP & COOLING SYSTEM, HOWO PARTS CATALOGS
| WATER PUMP & COOLING SYSTEM, D10 ENGINE EURO-III | ||
| Serial | Name | Number |
| 1 | Water Pump Assembly | vg1500060051 |
| 2 | Pump Seal | vg140608 |
| 3 | φ640 annular fan | vg2600060446 |
| 3 | φ590 annular fan | vg1500060447 |
| 3 | φ704 annular fan | vg1099060201 |
| 4 | Stud | 90003813148 |
| 5 | Intermediate flange | vg1500060240 |
| 6 | Intermediate flange | vg1038060002 |
| 7 | Fitting assembly | vg1560060004 |
| 8 | Hose Connector | vg1560060023 |
| 9 | Hose Connector Gasket | vg14060024 |
| 10 | Thermostat assembly (80 degrees) | vg1096069601 |
| 10 | Thermostat assembly (80 degrees) | vg1099060001 |
| 10 | Thermostat assembly (71 degrees) | vg1096069602 |
| 10 | Thermostat assembly (71 degrees) | vg1099060004 |
| 11 | Hex head bolts | 90003800467 |
| 12 | Hex head bolts | 90003802424 |
| 13 | Wave spring washer | 90003932023 |
| 14 | Automatic tensioning wheel | vg2600060313 |
| 15 | Hose | vg1096060033 |
| 16 | Hose hoop | 90003989308 |
| 17 | Type 2 all-metal hexagon nuts | 90003888452 |
| 18 | Hexagon socket head screws | q218b1625 |
| 19 | Spring washer | 190003931182 |
| 20 | Pump butter means | vg2600060456 |
