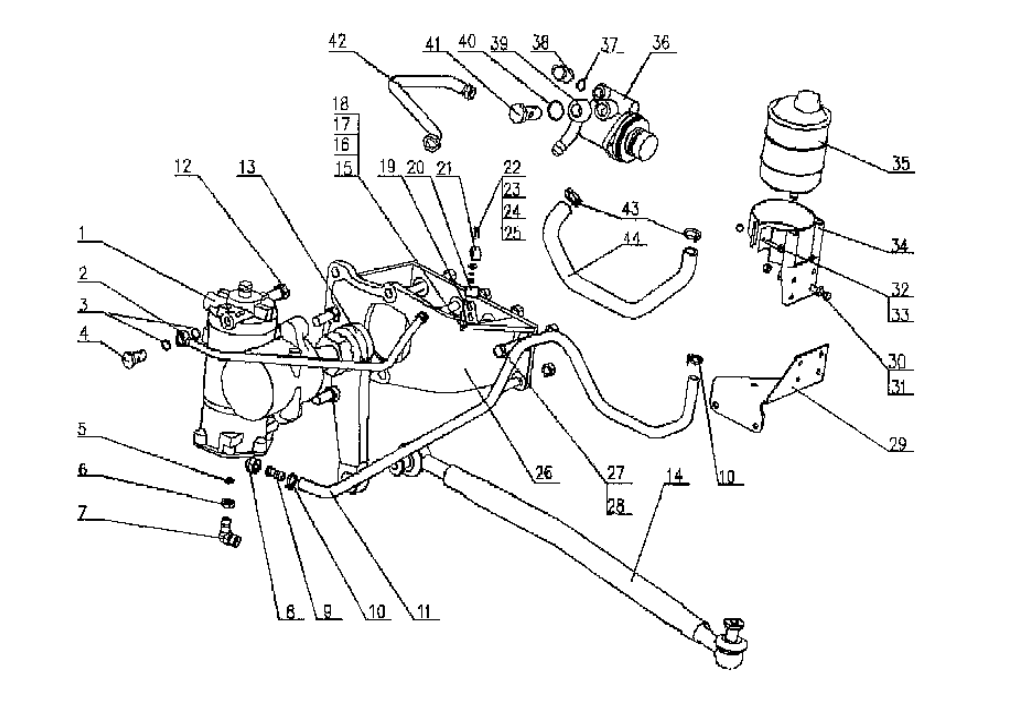

4x2 6x4 Hydraulic Steering System, Sinotruk Spare Parts Pdf
| Serial | Name | Name | Part Number |
| 1 | ZF8098 动力转向器 | ZF8098 power steering gear | AZ9719470228 |
| 1 | ZF8095 动力转向器 | ZF8098 power steering gear | AZ9100470225 |
| 1 | ZF8098 右置 | ZF8098 right hand | WG9716470150 |
| 2 | 压油管总成 | Pressure oil pipe assembly | AZ9719470029 |
| 2 | 压油管总成 | Pressure oil pipe assembly | AZ9725470229 |
| 2 | 压油管总成 | Pressure oil pipe assembly | AZ9716470050 |
| 3 | 组合密封圈 | Combination seal | T071800 |
| 4 | 空心螺栓 | Hollow bolt | 190003962632 |
| 5 | 密垫圈 | Gasket | 252-3407054 |
| 6 | 紧固螺母 | Fastening nut | 252-3407055 |
| 7 | 弯管接头 | Elbow joint | 252-3407056 |
| 8 | 卡套管接头用螺母 | Tube connector nut | 190003883242 |
| 9 | 软管接头 | Hose connector | WG9100470078 |
| 10 | 软管卡箍 | Hose clamp | 190003989336 |
| 11 | 带纤维夹层的橡胶软管 | Rubber hose | WG9725470050 |
| 11 | 带纤维夹层的橡胶软管 | Rubber hose | AZ9716470060 |
| 12 | 六角头螺栓 | Hex head bolt | Q151B2045TF2 |
| 13 | 转向摇臂 | Steering rocker | WG9719470020 |
| 13 | 转向摇臂 | Steering rocker | WG9725470298 |
| 13 | 转向摇臂（右置） | Steering rocker | WG9716470020 |
| 15 | 六角头螺栓 | Hex head bolt | Q150B0630 |
| 16 | 1型六角螺母 | Hex nut | Q340B06 |
| 17 | 大垫圈 | Large washer | Q40206 |
| 18 | 弹簧垫圈 | Spring washer | Q40306 |
| 19 | 角形支架 | Angle bracket | 1397350169 |
| 20 | 绝缘套管 | Insulation sleeve | 190003489292 |
| 21 | 一端固定式单管夹片 | single pipe clip | Q68225 |
| 22 | 六角头螺栓 | Hex head bolt | Q150B0620 |
| 23 | 1型六角螺母 | Hex nut | Q340B06 |
| 24 | 弹簧垫圈 | Spring washer | Q40306 |
| 26 | 转向器支架 | Steering bracket | AZ9731470020 |
| 26 | 转向器支架 | Steering bracket | AZ9725470295 |
| 26 | 转向器支架（右置） | Steering bracket (right) | AZ9725470238 |
| 27 | 六角头螺栓（细牙） | Hexagon head bolts | Q151B1660TF2 |
| 28 | 自锁螺母 | Self-locking nuts | 190003888627 |
| 29 | 支架总成 | Bracket assembly | AZ9725470025 |
| 29 | 支架总成 | Bracket assembly | AZ9725470020 |
| 30 | 六角头螺栓 | Hex head bolt | Q151B1020 |
| 31 | 2型全金属六角锁紧螺母 | Hexagon lock nut | Q33210 |
| 32 | 六角头螺栓 | Hex head bolt | Q150B0835 |
| 33 | 螺母 | Nuts | Q33208 |
| 34 | 转向油罐支架总成 | Steering tank bracket | AZ9100470040 |
| 34 | 支架总成 | Bracket assembly | AZ9100470049 |
| 35 | 转向油罐 | Steering tank | WG9719470033 |
| 36 | 转向助力叶片泵 | Steering pump (right hand) | WG9719470037 |
| 36 | 转向助力叶片泵 | Steering pump | WG9619470080 |
| 36 | 转向助力叶片泵 | Steering pump | WG9631470060 |
| 37 | 组合密封垫 | Combination seal | T071800 |
| 38 | 旋转管接头总成 | Rotary pipe joint assembly | WG9100470110 |
| 39 | 环状接头 | Ring joint | WG9100470076 |
| 40 | 密封垫圈 | Sealing washer | 190003098031 |
| 41 | 空心螺栓 | Hollow bolt | 190003962651 |
| 42 | 高压软管 | high-pressure hose | WG9100470107 |
| 42 | 高压软管 | high-pressure hose | WG2032470140 |
| 42 | 高压软管 | high-pressure hose | AZ9716470070 |
| 43 | 软管卡箍 | Hose clamp | 190003989301 |
| 44 | 成型软管 | Forming hose | WG9725470120 |
| 44 | 成型软管 | Forming hose | AZ9725470175 |
| 11a | 弹簧护套 | Spring jacket | 17017470015 |
| 36a | 密封垫 | Gasket | 161800130047 |
| 36b | 内六角螺钉 | Socket head cap screws | Q218B1025 |
| 36c | 内六角螺钉 | Socket head cap screws | Q218B1035 |
| 44a | 弹簧护圈 | Spring retainer | AZ9725470084 |
| 44b | 护套 | jacket | AZ9123360300 |
