6x4 8x4 Rear Suspension, Howo Parts Catalogs


6x4 8x4 Rear Suspension, Howo Parts Catalogs.

6*4 8*4 howo suspension catalogs

Key Words´╝Üsinotruk parts catalog pdfhowo suspension catalog

6x4 8x4 Balance Suspension
No Number of part Quantity Designation
0 AZ9725520110 1 Balance shaft C with
housing(inc.1~20,55)
0 AZ9725520100 1 Balance shaft C with
housing(inc.1~20,55)
0 AZ9725520022 1 Balance shaft C with
housing(inc.1~20,55)
1 AZ9232520004 1 Balance shaft
3 Q5211645 2 Pin
4 WG9014520227 28 Stud
5 190003871353  28 Nut
6 199114520035  2 Balance shaft housing
6 199114520233  2 Balance shaft housing
7 199114520136  2 Bearing sealing cover
8 1614 130062 2 Sealing ring
9 AZ9114520223 2 Sealing ring
10 AZ9114520222 2 Ring
11 199014520191  2 Bush
12 199014520192  2 Space washer
12a 199014520193  2 Space washer
12b 199014520194  2 Space washer
12c 199014520303  2 Space washer
12d 199014520306  2 Space washer
12e 99114520059  2 Space washer
12f AZ9100520008 2 Space washer
13 199014520265  2 Stop washer
14 Q171B1655TF2 8 Screw
14a WG9114520041 2 Screw
15 190003962021  2 Screw
15 190003962021  2 Screw
16 Q150B0810 2 Screw
17 Q72308T5F 2 Grasket
18 199014520311  2 Cover
19 Q150B0820 16 Screw
20 Q40308 16 Spring washer
22 AZ9725520037 4 Spring clip
22 AZ9725520053 4 Spring clip
22 AZ9725520055 4 Spring clip
22 199114520234  4 Spring clip
23 1880340022  8 Washer
24 190003888749  8 Lock nut
25 AZ9638520005 2 Spring clip plate
26 199000520006  4 Guide bolt
27 AZ9725520001 1 Bracket left,front
27a AZ9725520002 1 Bracket right,front
27b AZ9725520003 1 Bracket left,rear
27c AZ9725520004 1 Bracket right,rear
27 AZ9725520011 1 Bracket left,front
27a AZ9725520012 1 Bracket right,front
27b AZ9725520058 1 Bracket left,rear
27c AZ9725520059 1 Bracket right,rear
27 AZ9638520001 1 Bracket left,frowt
27a AZ9638520002 1 Bracket right,frowt
27b AZ9638520003 1 Bracket left,rear
27c AZ9638520004 1 Bracket right,rear
28 Q151B22230 16 Screw
30 WG9114521174 4 Bottom brace rod C
30 199114520038  4 Bottom brace rod C
30 DZ9114520175 4 Bottom brace rod C
30 DZ9114520175 4 Bottom brace rod C
31 Q151B2090 2 Screw
32 190003803974  12 Screw
33 WG9114521175 2 Top brace rod C
33 199114520169  2 Top brace rod C
33 DZ9114520174 2 Top brace rod C
34 Q151B20200 4 Screw
35 190003888467  18 Lock nut
37 AZ9114520091 4 Stop C
37a Q150B1035 16 Screw
38 Q340B10 16 Nut
39 Q40310 16 Spring washer
45 WG9232520005 4 Diff.sheet
45 199014520224  4 Diff.sheet
46 199014520224  4 Diff.sheet
46a 199014520204  4 Diff.sheet
47 Q151C1260 12 Screw
48 190003888457  16 Lock nut
49 Q151C1255 4 Screw
50 Q40312 16 Spring washer

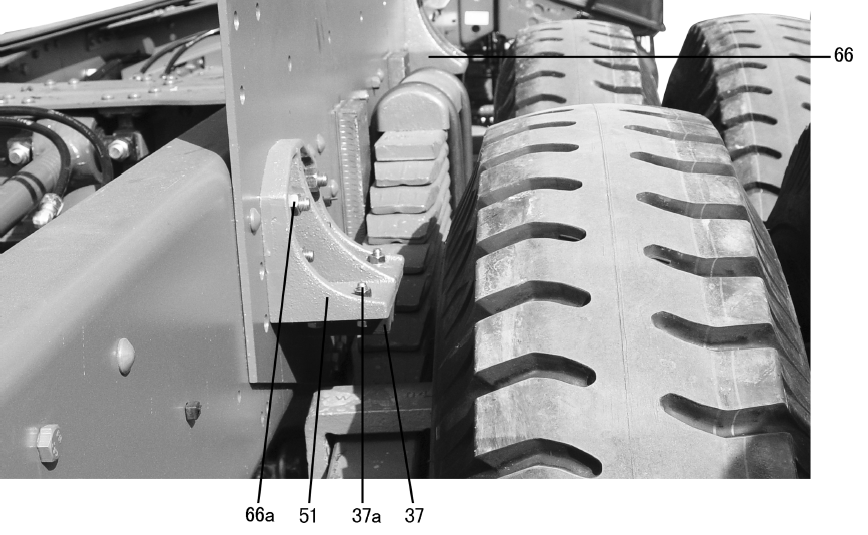

51 AZ9232520003 2 Stop bracket
51 AZ9114520098 4 Stop bracket
54 199014520019  4 Bolt
55 WG9114520042 4 Ball bearing
55a 199014520188  2 Retaining plate of bearing
56 199014520217  2 Bracket
57 199014520265  2 Lock washer
59 WG9232520008 2 Self-stop rear spring C
59 WG9725520010 2 Self-stop rear spring C
59 WG9232520028 2 Self-stop rear spring C
59 WG9731520013 2 Self-stop rear spring C
59 WG9638520008 2 Self-stop rear spring C
59 WG9232520232 2 Self-stop rear spring C
60 199100520112  4 Plate
61 199014520292  2 Bracket left
61a 199014520293  2 Bracket right
61 AZ9725520016 1 Bracket left,front
61a AZ9725520017 1 Bracket right,front
61b AZ9725520018 1 Bracket left,rear
61c AZ9725520019 1 Bracket right,rear
62 199014520256  4 Pin
65 1990003901905  4 Pin
66 AZ9232520002 4 Stop bracket
66 AZ9114520098 4 Stop bracket
66a Q150B1460 16 Screw
66b Q340B14 16 Nut
66c Q40314 16 Spring washer
67 Q40020 1 Washer
69 Q40312 8 Spring washer
