Piston & Connecting Rod, Howo Truck Parts Catalog Pdf

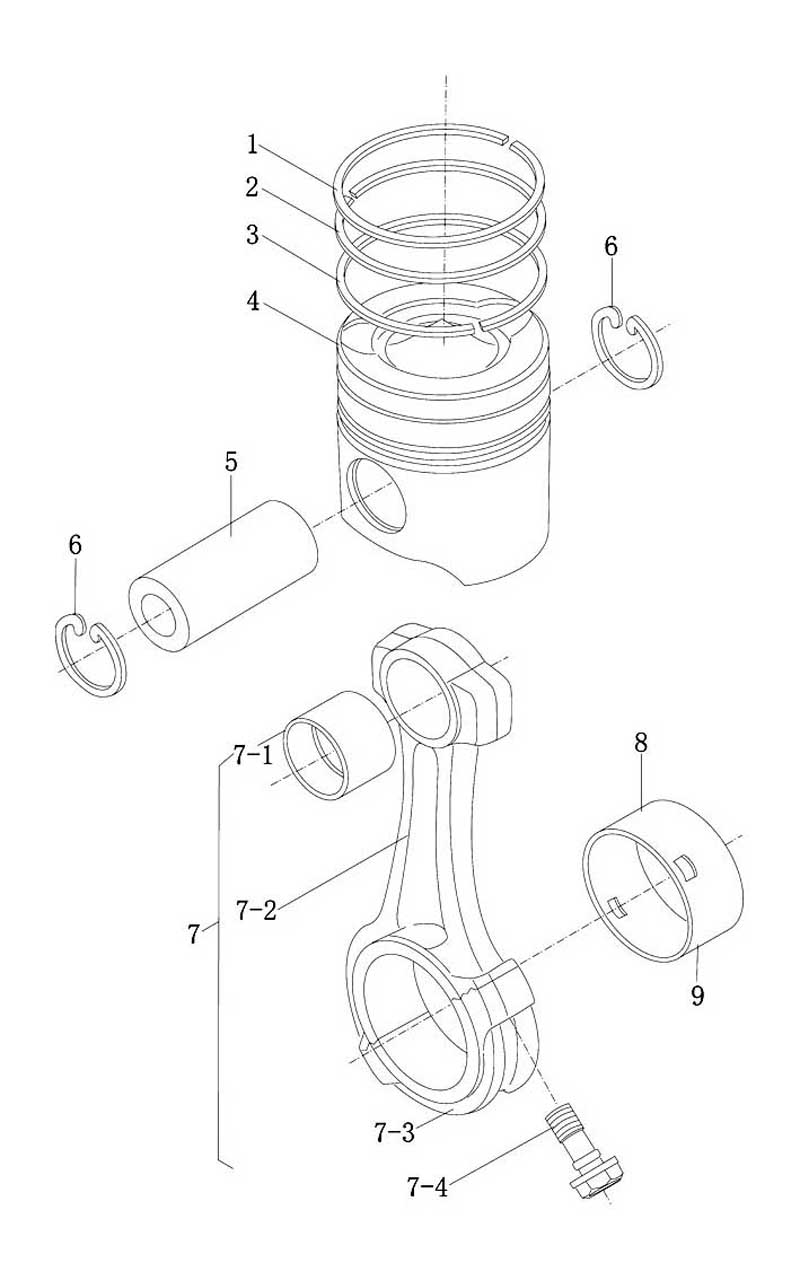

| CONNECTING ROD & PISTON | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 61560030047 | Double ladderring |
| 2 | 61560030078 | Conical ring |
| 3 | 61560030045 | Spiral spring oil ring |
| 4 | 612600030010 | Piston |
| 4 | 612600030011 | Piston |
| 5 | 61560030013 | Piston pin |
| 6 | 81560030012 | Ring |
| 7 | 61500030009 | Connecting rod |
| 8 | 612600030020 | Shell pin |
| 9 | 61560030033 | Shell pin |
| 7-1 | 61500030077 | Connecting bush |
| 7-2 | 61500030008 | Connector body |
| 7-3 | 61500030022 | Connector cover |
| 7-4 | 81500030023 | Connector bolt |
