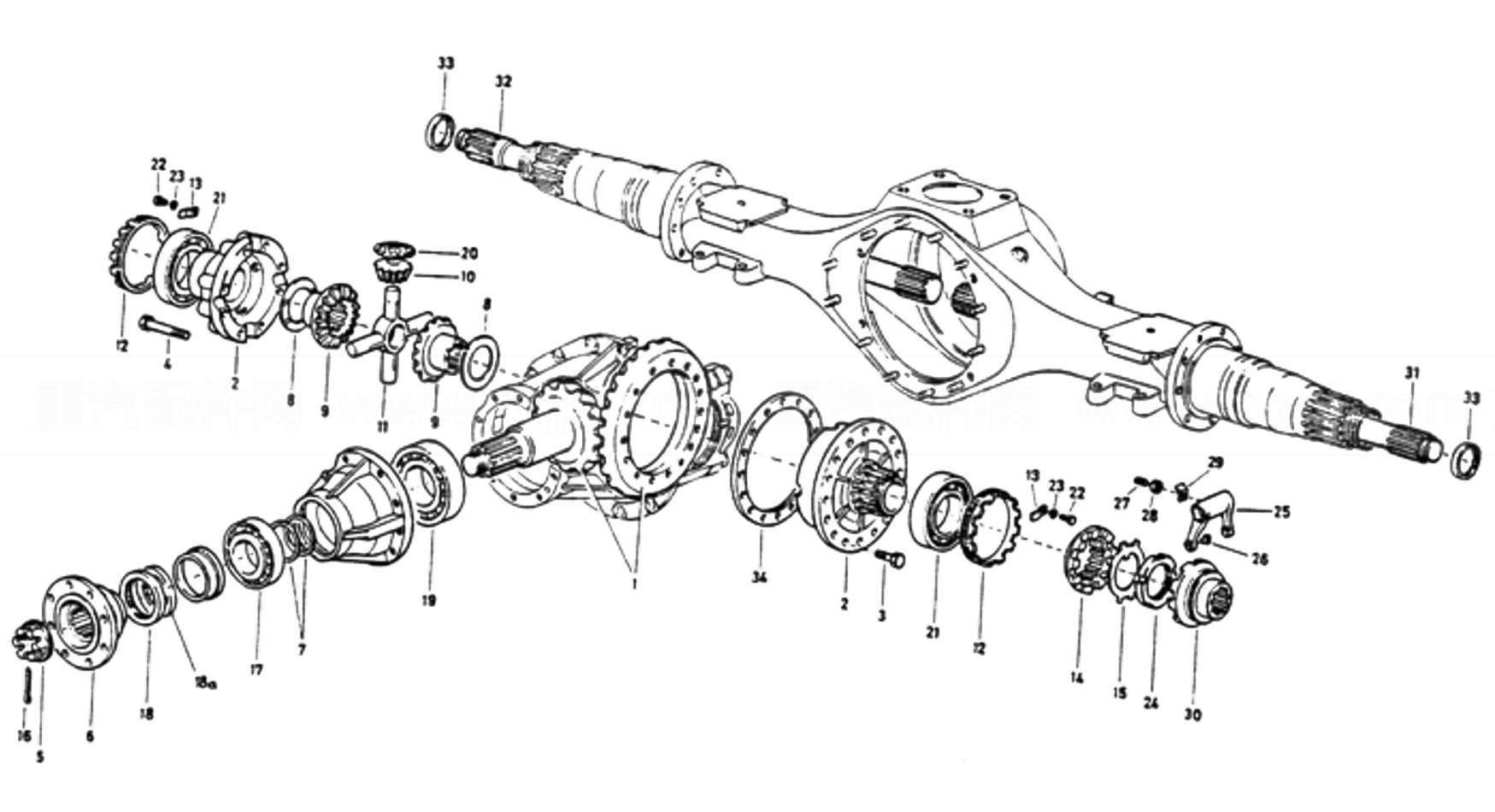

2nd Rear Driving Axle Driving Assembly, Howo Parts Catalogs
Serial | Part Number | Product Name |
1 | 199112320003 | Bevel gears 33/26 |
1 | 199012320181 | Bevel gears |
1 | 199012320177 | Bevel gears 28/17 |
1 | 199012320178 | Bevel gears pay 29/15 |
l | 199012320179 | Bevel gears 28/13 |
l | 199012320180 | Bevel gears |
1 | 199012320182 | Bevel gears |
2 | 199012320503 | Differential case |
2 | 199012320198 | Differential case |
2 | AZ9112320199 | Differential case |
2 | 179012320199 | Differential case |
3 | Q15181632TF2 | Hexagon head bolts |
3a | WG9114320003 | Driven bevel gear |
4 | Q15181480TF2 | Hexagon head bolts |
5 | 179000320013 | Flange nuts |
6 | 199012320110 | Flange assembly φ165 |
6 | AZ9112320110 | Φ165 star tooth flange assembly |
6 | 179000320010 | Φ150 flange assembly |
6 | AZ9128320014 | Φ180 star tooth flange assembly |
6 | 199014320261 | Φ180 flange assembly |
7 | 1880320002 | Adjusting washer |
7 | 1880320003 | Adjusting washer |
7 | 1880320004 | Adjusting washer |
7 | 1880320005 | Adjusting washer |
7 | 1880320006 | Adjusting washer |
7 | 1880320007 | Adjusting washer |
7 | 1880320008 | Adjusting washer |
7 | 1880320009 | Adjusting washer |
7 | 1880320010 | Adjusting washer |
7 | 188032001l | Adjusting washer |
7 | 1880320012 | Adjusting washer |
7 | 1880320013 | Adjusting washer |
7 | 1880320014 | Adjusting washer |
7 | 1880320015 | Adjusting washer |
8 | 11800320012 | Adjusting washer |
8 | 199012320129 | Adjusting washer |
8 | 1180032013l | Adjusting washer |
8 | 11800320132 | Adjusting washer |
8 | 13809320169 | Adjusting washer |
9 | 199012320009 | Side gears |
10 | 199012320010 | Planetary gear |
1l | 19901014320091 | Differential cross shaft |
12 | 13809320159 | Differential bearing adjustment nut |
13 | 17900320027 | Stop piece |
14 | 13809320155 | Fixed meshing sleeve |
15 | 13809320158 | Lock the gasket |
16 | Q5005055 | Open pin |
17 | 190003326236 | Tapered roller bearings 30312GB / T297-94 |
18 | AZ9112320030 | Shaft Seal (SD85X105X8) |
18a | AZ9112320184 | Shaft Seal (SS85X105X8) |
19 | 190003326547 | Tapered roller bearings 32315GB / T297-94 |
19 | 190003326546 | Tapered roller bearings 32316GB / T297-94 |
20 | 199012320150 | Planetary gears |
21 | 190003326148 | Tapered roller bearings 32216GB / T297-94 |
22 | Q150B0816 | Hexagon head bolts |
23 | Q40308 | Spring washers |
24 | 13809320157 | Garden nuts |
25 | 199012320014 | Fork |
26 | 11800320077 | Pull the fork block |
27 | Q2800825 | Slotted tapered screw |
28 | Q340808 | Type 1 hex nuts |
29 | 199012320023 | Bending plate |
30 | 13809320156 | Slide the sleeve |
31 | 199012340023 | Half axle (left) |
32 | 199012340024 | Axle (right) |
33 | 190003074340 | Shaft seal |
34 | 199012320121 | ring |
