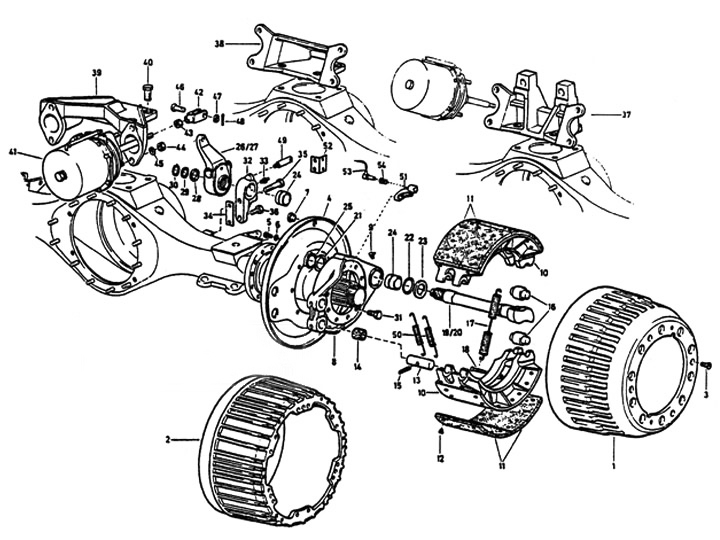

Rear Brakes, STR Axle Howo Parts Catalogs
Key Words：howo truck parts catalog pdf, str axle parts catalogs
| Serial | Part Number | Product Name |
| 1 | AZ9112340006 | Brake drum |
| 3 | 190003825513 | Cross recessed pan head screws |
| 4 | 1880340018 | Brake dust cover |
| 4 | 199112340012 | Brake dust cover |
| 5 | Q15080816 | Hexagon head bolts |
| 6 | Q40308 | Spring washers |
| 7 | 1880340037 | Seal ring |
| 8 | 199000340062 | Brake floor |
| 8a | AZ9112340010 | Sensor case |
| 8b | AZ9112340056 | Sensor stand |
| 9 | 199000343114 | Grease nipple |
| 9 | 199000340070 | Brake shoe assembly |
| 10 | 199000340061 | Brake shoes |
| 11 | WG9200340068 | Brake friction plate |
| 1la | 199112340028 | Brake cushion lining |
| 12 | 189000340068 | Rivet |
| 13 | 199000340064 | Shaft |
| 14 | 1880340016 | Bushings |
| 15 | 19000390966l | Elastic cylindrical pins |
| 16 | 199a00340027 | Compressor wheel |
| 17 | AZ9100340012 | Return spring |
| 18 | 1880440032 | Pin |
| 19 | 199112340026 | Brake camshaft (left) |
| 19 | AZ9231340226 | Brake camshaft (left) |
| 20 | 199112340027 | Brake camshaft (right) |
| 20 | AZ9231340227 | Brake camshaft (right) |
| 21 | 1880440010 | washer |
| 22 | 1880340023 | Seal ring |
| 23 | 18804400lO | Gasket |
| 24 | WG9100340017 | Bushings |
| 25 | 190003933300 | Shaft with elastic ring |
| 26 | WG9100340056 | Brake arm assembly (left) |
| 26 | WG910034006l | Gap automatic adjustment arm |
| 26a | AZ9100349992 | Stent |
| 27 | WG9100340057 | Brake arm assembly (right) |
| 27 | WG9100340060 | Gap automatic adjustment arm |
| 27a | AZ9100349993 | Stent |
| 28 | 1880340022 | washer |
| 29 | 180320028 | Adjusting washer |
| 29 | 180320029 | Adjusting washer |
| 29 | 180320030 | Adjusting washer |
| 29 | 180320046 | Adjusting washer |
| 30 | 1900D3933116 | Shaft with elastic ring |
| 31 | Q15181635TF2 | Hexagon head bolts |
| 32 | 199014340041 | Camshaft bracket |
| 33 | 190003963112 | Straight through the grease nipple |
| 34 | 1880340031 | Adjusting washer |
| 34 | 1880340032 | Adjusting washer |
| 34 | 1880340033 | Adjusting washer |
| 34 | 1880340034 | Adjusting washer |
| 34 | 1380947003l | Adjusting washer |
| 34 | 13809470032 | Adjusting washer |
| 34 | 13809470033 | Adjusting washer |
| 35 | Q15181490 | Hexagon head bolts |
| 36 | Q15181440 | Hexagon head bolts |
| 37 | 199014340042 | Brake cylinder bracket |
| 39 | 199012340066 | Brake cylinder bracket |
| 40 | Q15182040TF2 | Hexagon head bolts |
| 41 | WG910360303 | Composite brake cylinder |
| 42 | 190003964459 | Screw fork |
| 43 | Q341B14 | Hex nuts |
| 44 | Q341B16 | Hex nuts |
| 45 | Q40316 | Spring washers |
| 46 | 19000390366l | Pin |
| 47 | Q40ll4 | Flat Washers |
| 48 | Q5004022 | Open pin |
| 49 | 199014340048 | Cylindrical pin |
| 50 | 199112340049 | Tighten the spring |
