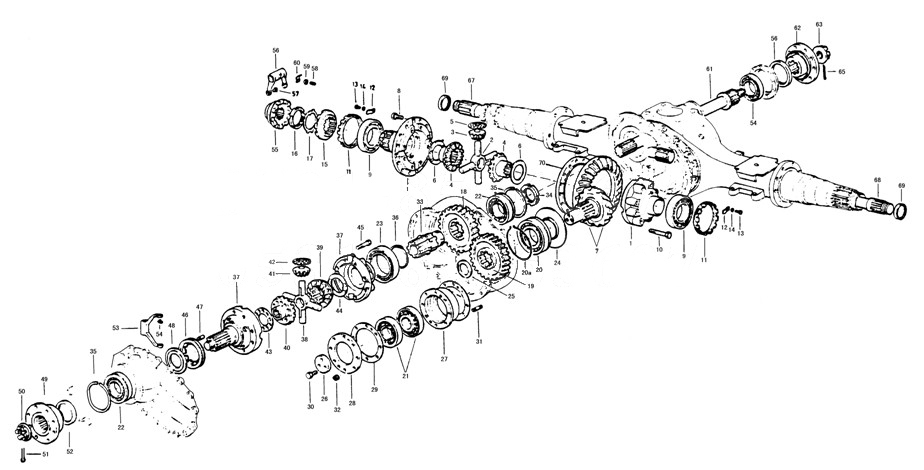

1st Rear Driving Axle Driving Assembly, Howo Parts Catalogs
| Serial | Part Number | Product Name |
| 1 | 199014320165 | Differential case |
| 1l | 13809820159 | Differential bearing adjustment nut |
| 2 | 199014320091 | Differential cross shaft |
| 2l | 190003326333 | Cone Roller Bearings 31311GB / T297-94 |
| 3 | 1990123200l0 | Planetary gear |
| 4 | 199012320009 | Side gears |
| 5 | 199012320150 | Planetary gears |
| 6 | 11800320012 | Adjusting washer |
| 6 | 199012320129 | Adjusting washer |
| 6 | 11800320131 | Adjusting washer |
| 6 | 11800320132 | Adjusting washer |
| 6 | 13809320169 | Adjusting washer |
| 7 | AZ900432025l | Bevel gears 28/17 |
| 7 | 199014320250 | Bevel gears pay 29/15 |
| 7 | 199014320253 | Bevel gears 28/13 |
| 7 | 199014320255 | Bevel gears |
| 8 | Q15181635TF2 | Hexagon head bolts-Q15181635TF2 |
| 8a | WG9004320003 | Driven bevel gear bolt |
| 9 | 190003326148 | Tapered roller bearings 32216GB / T297-94 |
| 10 | Q15181480TF2 | Hexagon head bolts-Q15181480II ~ |
| 12 | 179000320027 | Stop piece |
| 13 | Q15080816 | Hexagon head bolts |
| 14 | Q40308 | Spring washers |
| 15 | 13809020155 | Fixed meshing sleeve |
| 16 | 13809320157 | Round nut |
| 17 | 13809820158 | Lock the gasket |
| 18 | 199014320136 | Active cylindrical gear Z = 35 |
| 18 | 199014320209 | Active cylindrical gear z = 31 |
| 18 | 199114320002 | Active cylindrical gear z = 35 |
| 19 | 1990l4320137 | Driven cylinder gear z = 35 |
| 19 | 199014320208 | Driven cylinder gear z = 26 |
| 19 | 19911432000l | Driven cylindrical gear z = 27 |
| 20 | WG9014320257 | Roller bearings |
| 20a | 199014320256 | Wire stalls |
| 22 | 190003311543 | Radial ball bearings 6312N with snap groove |
| 23 | 190003310239 | With dust cover deep groove ball bearings 6019-Z |
| 24 | 199014320174 | Block pieces |
| 25 | 199014320140 | Circle |
| 26 | 1780320088 | Bearing plate |
| 26a | AZ9114320002 | Locking plate - bearing plate fastening bolts |
| 27 | 199014320129 | Bearing seat |
| 28 | 199014320128 | Bearing outer ring press plate |
| 29 | 199014320134 | Adjusting washer |
| 29 | 199014320133 | Adjusting washer |
| 29 | 199014320132 | Adjusting washer |
| 29 | 199014320131 | Adjusting washer |
| 30 | Q15081430TF2 | Hexagon head bolts |
| 31 | 190003813543 | Studs |
| 32 | Q33210 | 2 type all metal hexagonal locking nut |
| 33 | 199014320135 | Hollow shaft |
| 34 | 199012250031 | Slotted nuts |
| 35 | 190003935383 | Shaft with flattened steel wire ring - Q433130 |
| 36 | 190003933580 | Shaft with elastic ring |
| 37 | 199014320166 | Differential case |
| 38 | 19901432009l | Differential cross shaft |
| 39 | 199014320059 | Side gear (rear) |
| 40 | 199114320032 | Side gear (front) |
| 41 | 1990123200lO | Planetary gear |
| 42 | 199012320150 | Planetary gears |
| 43 | 199014320070 | Side gear (front) gasket |
| 43 | 199014320069 | Side gear (front) gasket |
| 43 | 199014320211 | Side gear (front) gasket |
| 43 | 199014320068 | Side gear (front) gasket |
| 43 | 199014320067 | Side gear (front) gasket |
| 44 | 199014320074 | Side gear (rear) gasket |
| 44 | 199014320073 | Side gear (rear) gasket |
| 44 | 199014320210 | Side gear (rear) gasket |
| 44 | 199014320072 | Side gear (rear) gasket |
| 44 | 19901432007l | Side gear (rear) gasket |
| 45 | Q15181480TF2 | Hexagon head bolts |
| 46 | 1228320l05 | Differential lock ring |
| 47 | 1228320106 | Differential lock |
| 48 | 199014320061 | Axial differential housing gasket |
| 49 | 190014320261 | Φ180 flange |
| 49 | AZ9128320014 | Φ180 end face flange |
| 49 | 199012320110 | Flange assembly φ165 |
| 49 | AZ9114320205 | Φ165 end face flange |
| 50 | 179000320013 | Flange nuts |
| 51 | Q5005055 | Open pin |
| 52 | 190003070026 | Shaft seal |
| 52 | 190003008722 | Shaft seal |
| 53 | 199014320053 | Fork |
| 54 | 11800320077 | Fork block |
| 55 | 13809e20156 | Slide the sleeve |
| 56 | 199012320014 | Fork |
| 57 | 11800320077 | Fork block |
| 58 | Q2800825 | Slotted tapered screw |
| 59 | Q340B08 | Type 1 hex nuts |
| 60 | 199012320023 | Bending plate |
| 61 | 199114320031 | Through the shaft |
| 62 | AZ9114320205 | Flange assembly |
| 62 | 199014320205 | Flange assembly |
| 63 | 179000320013 | Flange nuts |
| 64 | 190003311036 | Deep groove ball bearings 6212GB / T276-94 |
| 65 | Q5005055 | Open pin |
| 66 | 190003078772 | Shaft seal |
| 67 | AZ9231340223 | Half axle |
| 67 | 199012340023 | Half axle (left) |
| 68 | AZ9231340224 | Half axle |
| 68 | 199012340024 | Axle (right) |
| 69 | 190003074340 | Shaft seal |
| 70 | 199014320153 | ring |
