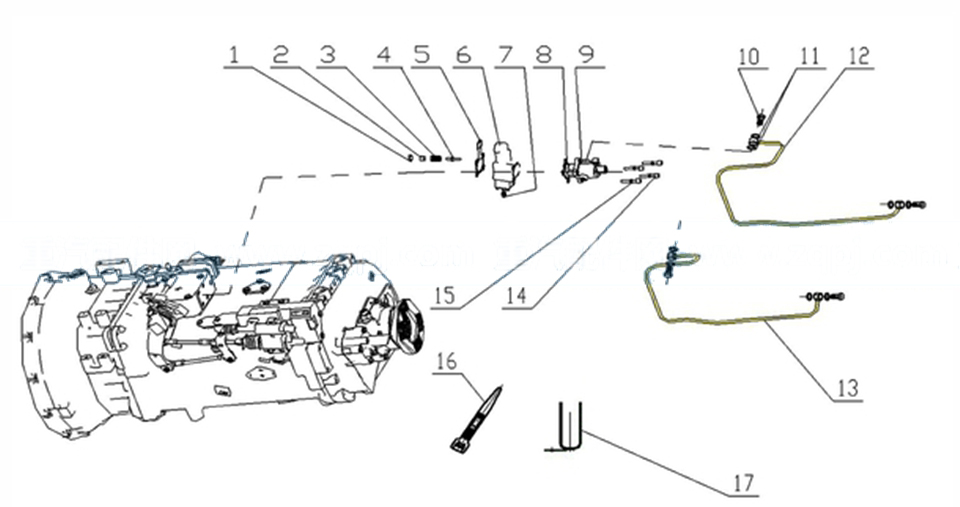

AIR CONTROL PIPELINE VALVE, HW19710T PARTS CATALOGS
| AIR CONTROL PIPELINE VALVE, HW19710T | |||
| Serial | Name | Number | Note |
| 1 | O ring | az9003071700 | |
| 2 | bushing | az2229250017 | |
| 3 | spring | az2229250004 | |
| 4 | locking pin | az2229250015 | |
| 5 | air control valve paper pad | az2229250023 | |
| 6 | air control locking valve | az2203250010 | |
| 7 | straight in | wg2229250006 | |
| 8 | double H valve gasket | az2229250024 | |
| 9 | double H valve | az2203250003 | |
| 10 | hollow bolt | 190003962621 | |
| 11 | sealing ring | q72314 | |
| 12 | range gear soft pipe (low gear) | wg2203250033 | |
| 13 | range gear soft pipe (high gear) | wg2203250034 | |
| 14 | inner hexagonal colume head screw | q218b0880 | |
| 15 | spring gasket | q40308 | |
| 16 | wire nail | az2229250030 | |
| 17 | wire nail | az2229250031 | |
