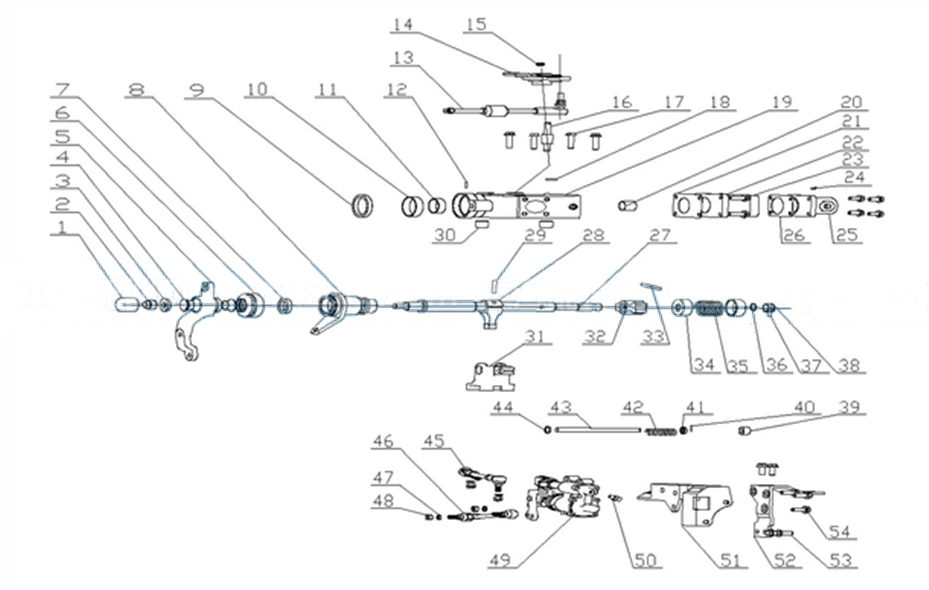

CAP & AIR BOOSTER, HW19710T PARTS CATALOGS
| CAP & AIR BOOSTER, HW19710T | |||
| Serial | Name | Number | Note |
| 1 | blanking cap | wg2229210084 | |
| 2 | locking nut | wg2229210083 | |
| 3 | gasket | wg2229210082 | |
| 4 | shifting shfat sleeve | wg2229210081 | |
| 5 | selector rocking arm | wg2214210015 | |
| 6 | rubber cover | wg2229210080 | |
| 7 | shifting shaft oil seal | wg9003073045 | |
| 8 | shifting fork sleeve | wg2203210311 | |
| 9 | oil seal for shifting shaft sleeve | wg9003075568 | |
| 10 | shifting shaft sleeve ONE | wg2229210077 | |
| 11 | shifting shaft sleeve TWO | wg2229210078 | |
| 12 | colume pin | wg2229210079 | |
| 13 | supporting rod | wg2229210076 | |
| 14 | select rod | wg2229210075 | |
| 15 | elasctic retaining ring for shaft | q43112 | |
| 16 | selector supporting rod | wg2229270003 | |
| 17 | hexagonal head bolt | q150b1085 | |
| 17 | spring gasket | q40310 | |
| 18 | bowl type plug | q72220 | |
| 19 | cap body | az2222210025 | |
| 19 | cap paper pad | wg2229210072 | |
| 20 | compound bushing | wg2229002520 | |
| 21 | end cap bushing | wg2229210017 | |
| 22 | end cap support | wg2222210026 | |
| 23 | set for hexagonal head bolt and spring gasket) | q1420825 | |
| 24 | breath plug (normal opened) | q901 | |
| 25 | right end cap | wg2229210063 | |
| 26 | paper pad for end cap | az2229210032 | |
| 27 | shiftng shaft (double) | wg2212210013 | |
| 28 | shift head | wg2214210012 | |
| 29 | pin | wg2229210009 | |
| 30 | positioning guiding cover | wg2229210036 | |
| 31 | inter-locking fork | wg2214210011 | |
| 32 | self locking block | az2229210008 | |
| 33 | drive pin | wg2229210012 | |
| 34 | seat ring | wg2229210007 | |
| 35 | spring (low gear side) | wg2229210021 | |
| 36 | elastic retaining ring for shaft | q43120 | |
| 37 | elastic colume pin | q5280632 | |
| 38 | sensor driving ring | wg2229210061 | |
| 39 | bushing | wg2229210001 | |
| 40 | kingpin | wg9003343178 | |
| 41 | spring retainer | wg2229210011 | |
| 42 | self locking spring | wg2229210033 | |
| 43 | self locking pin | wg2212210015 | |
| 44 | bowl type plug | q72214 | |
| 45 | shifting pulling rod | wg2203210313 | |
| 46 | selecting pulling rod | wg2203210312 | |
| 47 | spring gasket | q40310 | |
| 48 | fine thread hexagonal nut | q341b10 | |
| 49 | air booster | wg2203210314 | |
| 50 | air pipe connector for booster | wg2229210090 | |
| 51 | air booster support | wg2229010014 | |
| 52 | air booster support | wg2229010015 | |
| 53 | set for hexagonal head bolt and spring gasket) | q1421025 | |
| 54 | fine thread combined bolt | az9003801026 | |
